Working Principle of the Oral Dissolving Film (ODF) Machine
Author: Leyu Zhu,SiHan Meng
Abstract
Oral dissolving film (ODF) machines transform a liquid or semi-liquid casting solution into precise, fast-disintegrating films via continuous web handling, precision coating, controlled drying, finishing, and primary packaging. This paper explains the end-to-end working principle of an industrial ODF line, highlighting the physics of slot-die (or knife-over-roll) coating, wet-to-dry conversion, heat and mass transfer in multi-zone dryers, web-tension control, and downstream slitting/die-cutting. We define practical measures—thickness, coat weight, residual solvent/moisture, and dissolution time (dissolution_s), plus content uniformity—and show illustrative results linking process levers (e.g., coat weight) to performance (dissolution). A Quality-by-Design (QbD) and Process Analytical Technology (PAT) framework is referenced throughout [1–7].
Introduction
ODFs provide needle-free, water-independent dosing and rapid onset, using thin polymeric films that dissolve in 10–30 s depending on formulation and microstructure [1–3]. Manufacturing requires: (i) accurate solution preparation (API, polymer, plasticizer, flavors), (ii) precision coating onto a moving carrier, (iii) controlled drying to achieve target solids and morphology, and (iv) finishing into unit doses. Robust operation depends on line speed, coating gap, viscosity, dryer set-points, humidity, and web-tension loops, consistent with ICH Q8/Q9/Q10 and PAT concepts [4–7].
Methods (Working Principle by Module)
1) Solution Preparation and Conditioning
Mixing/degassing: Ensures homogeneous solids and removes bubbles that cause pinholes/voids.
Key variables: Solids fraction (defines wet→dry shrink), viscosity/rheology (coating window), pH, temperature [1–3].
2) Precision Coating (Slot-Die or Knife-Over-Roll)
Slot-die: A pressurized manifold distributes solution uniformly; the die-lip–substrate gap and pump flow define wet thickness.
Wet→dry conversion: Dry thickness = wet thickness × solids fraction; coat weight (g/m²) ≈ solids × wet thickness × density[1,2].
3) Multi-Zone Drying (Heat & Mass Transfer)
Principle: Convective heat raises web temperature; solvent vapor is removed by airflow. Early zones control skinning; mid zones drive bulk evaporation; late zones equilibrate moisture to target residuals.

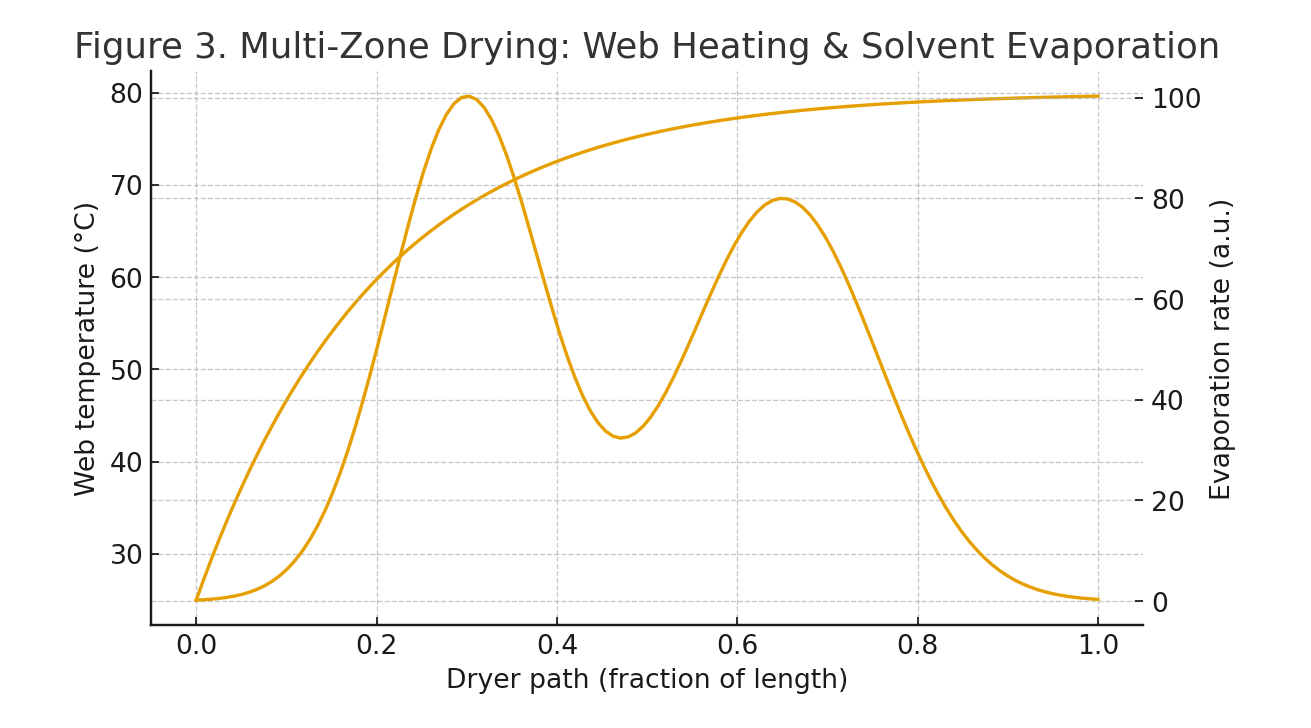

Set-points: Temperature, air velocity, humidity (RH), and dwell time tuned to avoid bubble formation, curling, or over-drying [2,3]. Figure 3 illustrates typical web-temperature rise and evaporation profile along the dryer.
4) Web Handling & Tension Control
Closed-loop zones: Each span (unwind → coating → dryer sections → calender → slitting → rewind) has a tension set-point to prevent wrinkles, neck-in, or elongation. Figure 4 shows an illustrative tension profile [2,3].
5) Finishing (Calendering, Slitting, Die-Cut, Pick-Place)
Calendering: Optional nip smooths topography/sets caliper.
Slitting/Rewind: Creates master rolls; die-cutting/pick-place forms unit films for primary packs (sachets or blister-style).
6) Primary Packaging
Barrier laminates (e.g., PET/AL/PE) protect against moisture/oxygen and prevent blocking; sealing parameters must protect aroma and potency [2,3].
Measures (What to Monitor)
Wet parameters: Viscosity, solids fraction, temperature, microbubble count.
Dry film: Thickness, coat weight, residual solvent/moisture, density/porosity, roughness.
Performance: Dissolution time (dissolution_s), disintegration, content uniformity/potency, WVTR/OTR protection.
Process variables: Line speed, die gap/flow, dryer set-points, web tension, RH.
PAT/QC: In-line thickness gauges, at-/on-line NIR for solids/assay, SPC trending [4–7].
Results (Illustrative Relationships)

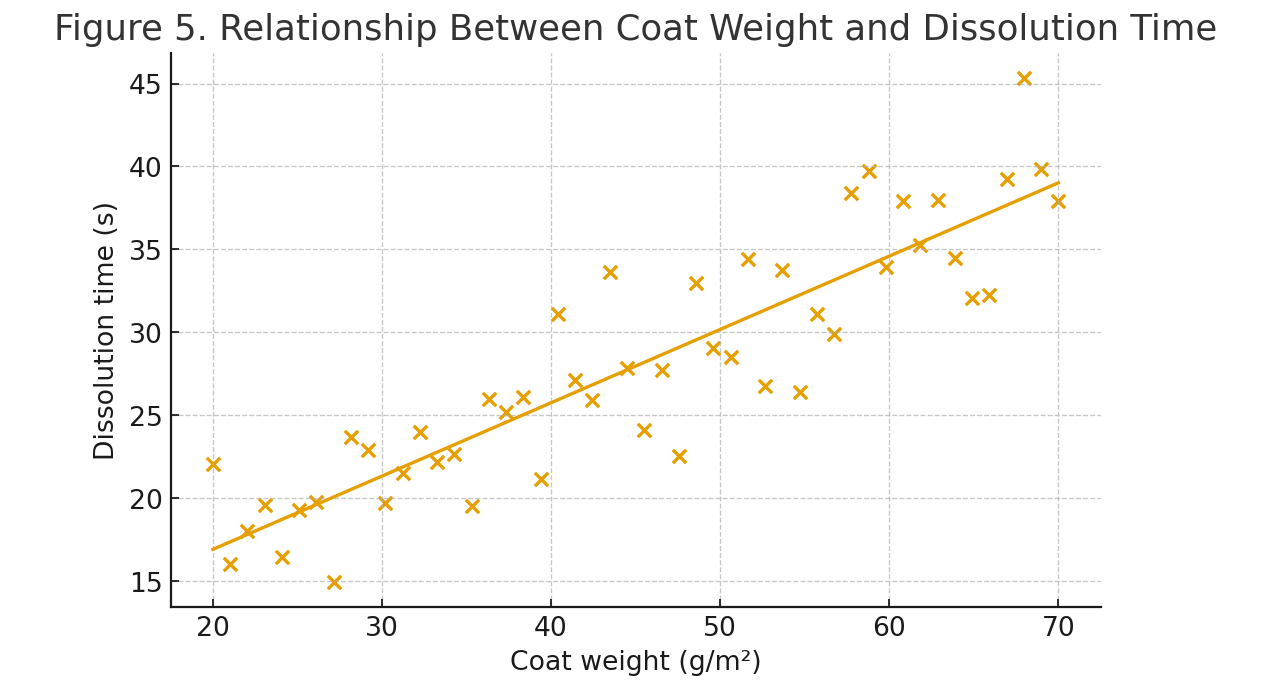

To visualize the machine-principle impacts on performance, Figure 5 shows an example relationship between coat weight and dissolution time (dissolution_s): higher coat weight tends to increase dissolution time because thicker films slow water ingress and dissolution front propagation [1–3].
Discussion
How Each Module Shapes Product Performance
Coating physics → microstructure: Uniform slot-die flow and stable bead prevent thickness bands that cause variable disintegration and dose non-uniformity [1,2].
Dryer strategy → porosity/moisture: Early skinning suppresses bubble growth; staged temperatures balance solvent removal against internal stress and taste/aroma retention [2,3].
Tension loops → dimensional stability: Proper profiles prevent wrinkles and edge-defects that translate into die-cut yield loss and packing issues.
Packaging barrier → shelf performance: Moisture-sensitive films need low WVTR laminates; seal parameters avoid aroma loss and prevent blocking.
Control Strategy (QbD/PAT)
Critical Material Attributes (CMAs): Polymer grade, plasticizer type/level, solids fraction, flavor system.
Critical Process Parameters (CPPs): Pump flow, die gap, line speed, dryer zone temps/RH, web tension.
Critical Quality Attributes (CQAs): Thickness/coat weight, residuals, dissolution_s, assay/content uniformity, organoleptics.
PAT: In-line thickness; at-line NIR for solids and assay; SPC with control limits; feedback to pump/die and dryer [4–7].
Conclusion
The ODF machine operates as an integrated printing-like process: precision liquid lay-down, controlled solvent removal, and gentle web handling, followed by accurate finishing and barrier packaging. Understanding the working principle at each module—coating hydrodynamics, wet-to-dry conversion, convective drying, and closed-loop tension control—enables predictive tuning of dissolution_s, thickness/coat weight, and content uniformity. A QbD/PAT framework links CMAs/CPPs to CQAs, delivering robust, scalable ODF manufacturing consistent with pharmacopeial and ICH expectations [1–7].
