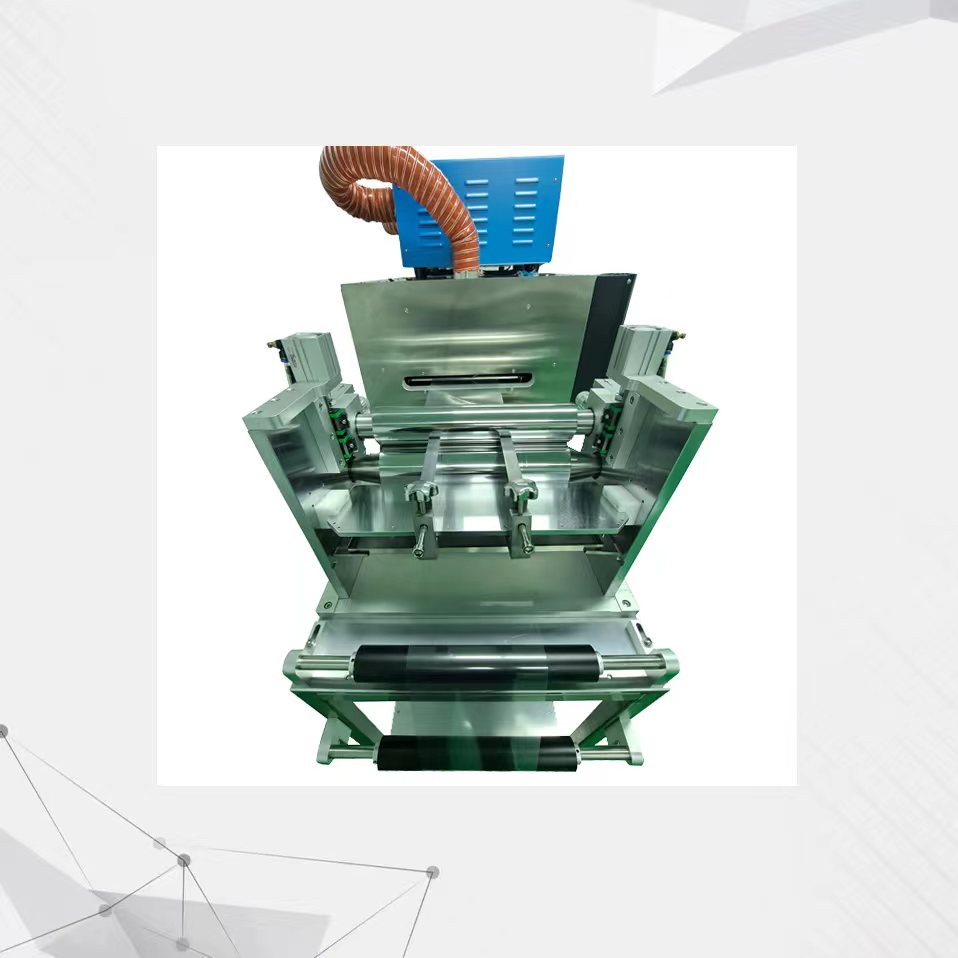

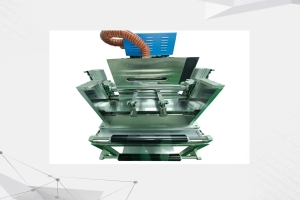

MYR-1060DEEP AUTOMATIC HOT EMBOSSING & DIE-CUTTING MACHINE

1、Precision Control & Automation

●Servo Speed Regulation System: Ensures precise speed control for consistent film production.

●Magnetic Powder Brake in Unwinding Unit: Provides accurate tension control for smooth material handling.

●Automatic Registration: Machine auto-registers working length and displays real-time working speed.

2、Modular & User-Friendly Design

●Modular Structure: Individual modules can be easily assembled/dismantled for maintenance or adjustments.

●Cylindrical Locating Pins: Enable quick, tight, and precise alignment during assembly.

3、Advanced Drying System

●Compartmentalized Drying Chamber: Each section features independent automatic control of temperature, humidity, and concentration for optimal drying efficiency.

●Customizable Length: Drying chamber can be tailored to customer-specific requirements.

4、GMP-Compliant Material Safety

●316 Stainless Steel Construction: All material-contact parts (rollers, drying channel, etc.) meet GMP standards for hygiene and corrosion resistance.

5、Enhanced Safety & Certification

●UL-Certified Components: Electrical systems, wiring, and operation methods comply with UL safety standards.

●Emergency Stop Switch: Ensures operator safety during machine operation or mold changes.

●Stainless Steel Separation Plate: Isolates the lower driving zone from the upper operation zone, preventing cross-contamination and simplifying cleaning.

6、Efficient Continuous Production

●Fully Automated Process: Unwinding → Coating → Drying → Rewinding runs continuously without manual intervention, boosting productivity and reducing labor costs.

The working principle of the automatic oral thin film making machine is as follows: first, it utilizes a precision coating device to evenly apply a layer of liquid material onto the surface of the base roll, ensuring that the material distribution is uniform and consistent. Subsequently, the base roll with the coated liquid material enters the drying channel, where under the action of precisely controlled temperature and airflow, the solvent (moisture) in the liquid material is rapidly evaporated, thereby realizing the drying of the material layer. After drying, the formed thin film undergoes a cooling process to stabilize its physical properties and prevent deformation. Then, winding operation is performed; in some cases, it can also be composited with another material as needed to enhance the performance of the thin film. Finally, the final films (or composite films) meeting the required specifications are obtained.
