Author: Sihan Meng, Leyu Zhu, Pengcheng Shi
Affiliation: RSBM
Email: pengchengshi@biotechrs.com; pcspc9@gmail.com
Abstract
In Oral Disintegrating Film (ODF) manufacturing, slitting and die-cutting are often regarded as downstream mechanical steps with limited technical importance. In reality, these processes are decisive for unit-dose accuracy, appearance consistency, yield rate, and overall product reliability. Because ODFs rely on area-based dosing rather than weight-based dosing, any deviation introduced during slitting or die-cutting directly translates into dosage variability. This paper systematically examines slitting and die-cutting as critical unit operations, analyzing their mechanisms, key process parameters, common failure modes, and quality measures. The discussion demonstrates why robust converting processes are essential for transforming continuous films into consistent, market-ready individual units.
Introduction
Oral Disintegrating Films are produced as continuous sheets through coating and drying processes and subsequently converted into individual dosage units by slitting and die-cutting. While formulation and coating steps receive significant attention, many production failures emerge during converting, where mechanical stress, alignment errors, and dimensional variability are amplified [1].
Unlike tablets, where mass is directly controlled, ODF dose accuracy is defined by film thickness and surface area. Therefore, converting precision is as critical as formulation design [2]. This paper explores slitting and die-cutting as precision processes rather than simple mechanical operations, emphasizing their role in ensuring consistency and regulatory compliance.
Methods
This paper integrates peer-reviewed literature, pharmacopeial principles, and industrial ODF manufacturing experience. Slitting and die-cutting operations were analyzed in terms of mechanical mechanics, process stability, and their impact on critical quality attributes (CQAs). Failure modes were categorized based on root causes across material, equipment, and operational domains [3].

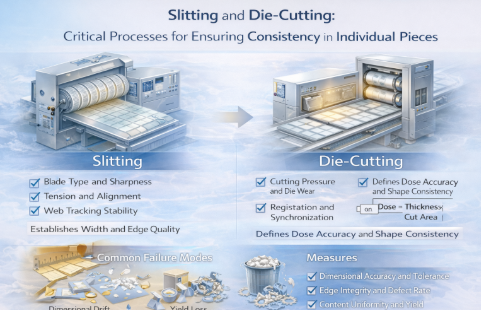

Role of Slitting in ODF Manufacturing
Purpose of Slitting
Slitting divides wide master rolls into narrower webs suitable for downstream die-cutting or packaging. It establishes the lateral dimensional accuracy of the film.
Slitting as a Precision Operation
In ODF production, slitting tolerance directly affects:
Unit width and area
Edge quality and integrity
Web tracking stability during die-cutting
Even sub-millimeter deviations can propagate into dose variability [4].
Key Slitting Parameters
Blade Type and Sharpness
Dull or inappropriate blades cause edge fraying, micro-tears, or particle generation, which later lead to tearing during die-cutting or packaging.
Web Tension Control
Excessive tension stretches the film elastically or plastically, altering final dimensions. Insufficient tension leads to wandering and uneven slit width [5].
Alignment and Guiding
Poor alignment causes cumulative width errors across multiple slit lanes, compromising uniformity.
Die-Cutting as a Dose-Defining Step
Area-Based Dosing
In ODFs, dose per unit is calculated as:
[
\text{Dose} = \text{Film thickness} \times \text{Density} \times \text{Cut area}
]
Thus, die-cut geometry directly defines dosage accuracy [6].
Cutting Methods
Common methods include rotary die-cutting and flatbed die-cutting. Rotary systems are favored for continuous, high-speed production, while flatbed systems offer flexibility at lower speeds.
Key Die-Cutting Parameters
Cutting Pressure and Depth
Excessive pressure damages film edges and backing substrates; insufficient pressure results in incomplete cuts or ragged edges.
Die Design and Wear
Worn dies introduce dimensional drift and burrs, increasing rejection rates over time.
Registration and Synchronization
Misregistration between web speed and die rotation causes inconsistent cut positioning and shape distortion [7].
Common Failure Modes
Dimensional Drift
Gradual changes in cut size due to tension fluctuation or die wear result in subtle but critical dose variation.
Edge Defects
Rough or torn edges increase moisture uptake, accelerate degradation, and reduce visual quality.
Yield Loss
Poor slitting or cutting dramatically increases scrap rates during packaging and downstream handling [8].
Measures
The effectiveness of slitting and die-cutting processes is evaluated using the following indicators [9,10]:
Dimensional accuracy and tolerance
Content uniformity (area-based)
Edge integrity and defect rate
Yield after converting and packaging
Frequency of die replacement or adjustment
These measures link mechanical precision to product quality and economic performance.
Results
Industrial experience demonstrates that optimized slitting and die-cutting significantly improve unit-dose uniformity and first-pass yield. Facilities with robust converting control show lower batch rejection rates and improved consistency, even when upstream variability exists. Conversely, weak converting processes negate gains achieved in formulation and coating [11].
Discussion
Slitting and die-cutting represent the point where continuous manufacturing meets discrete dosage definition. Errors introduced here cannot be corrected downstream. Treating these steps as minor mechanical operations leads to underinvestment in tooling quality, tension control, and maintenance—ultimately increasing cost and risk.
From a systems perspective, converting performance depends on upstream film uniformity and downstream packaging requirements. Early integration of converting considerations into process design is essential for scalable ODF manufacturing [12].
Conclusion
Slitting and die-cutting are critical, dose-defining processes in Oral Disintegrating Film manufacturing. Their precision directly determines unit consistency, yield rate, and market acceptability. Robust equipment, tight process control, and proactive maintenance are essential to ensure that continuous films are reliably transformed into consistent individual pieces. Recognizing converting as a core quality operation rather than a peripheral step is key to successful, large-scale ODF production.
References
Fu Y et al. Expert Opin Drug Deliv. 2004;1(4):673–690.
Preis M. J Pharm Pharmacol. 2013;65(2):157–170.
Cilurzo F et al. Eur J Pharm Biopharm. 2008;70(3):895–900.
Dixit RP, Puthli SP. J Control Release. 2009;139(2):94–107.
Hoffmann EM et al. Pharm Res. 2011;28(8):1914–1922.
Morales JO, McConville JT. Ther Deliv. 2011;2(5):637–646.
Kistler SF, Schweizer PM. Liquid Film Coating. Chapman & Hall; 1997.
Borges AF et al. Int J Pharm. 2015;494(1):332–339.
USP <905> Uniformity of Dosage Units.
USP <701> Disintegration Test.
Keshari R, Keshari S. J Drug Deliv Ther. 2014;4(4):1–7.
Preis M. Drug Dev Ind Pharm. 2013;39(7):1049–1057.
